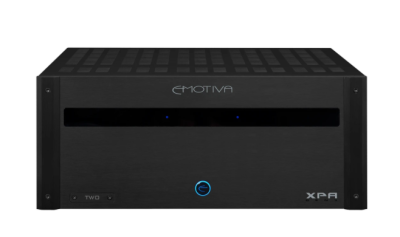

Emotiva XPA 2 300W

รีวิวยอดนิยม Emotiva XPA 2 300W ที่ดีที่สุดสำหรับคุณ

รายละเอียดสินค้า ⇨

• Circuit Topology
• - The XPA-2 Gen3 is a fully modular audio power amplifier with a high-efficiency switch mode power supply (SMPS), independent, fully discrete, dual differential, high current, short signal path Class A/B amplifier modules, Optimized Class H™power supply topology, and microprocessor-controlled fault protection.- The XPA-2 is powered by a high efficiency, audiophile grade, Switch Mode Power Supply (SMPS).Audio Specifications
• - The XPA-2 Gen3 features two of our High-Powered Single Channel Modules. Audio Specifications (Two High-Powered Single Channel Modules):
• - Power Output:
• 300 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven.
• 550 watts RMS/channel; 20 Hz – 20 kHz; THD<0.2%; 4 Ohms; one channel driven.
• 300 watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven.
• 490 watts RMS/channel; THD<0.1%; 4 Ohms; two channels driven.
• - Power Bandwidth (at rated power; 8 Ohm load): 20 Hz to 20 kHz (+ / – 0.1 dB).
• - Broad Band Frequency Response: 5 Hz to 80 kHz +0/-2 dB.
• - THD + noise: < 0.005%; at 100 watts RMS; 1 kHz; 8 Ohms.- Signal to Noise Ratio (8 Ohm load):
• > 117 dB; ref FTC rated power; unbalanced input (A-weighted).
• > 91 dB; ref 1 watt; unbalanced input (A-weighted).
• - Minimum Recommended Load Impedance (per channel): 4 Ohms
• (which equals one 4 Ohm load or two paralleled 8 Ohm loads).
• - Damping Factor (8 Ohm load): > 500.
• - Input Sensitivity (for rated power; 8 Ohm load): 1.5 V.
• - Gain: 29 dB.
• - Input Impedance:
• 33 kOhms (balanced).
• 23.5 kOhms (unbalanced).Input And Output Connections
• - Input Connections (High-Powered Single Channel Modules):
• Unbalanced (RCA); balanced (XLR); one each per channel, independently selectable.
• - Input Connections (Stereo Modules):
• 2 Unbalanced (RCA); 2 balanced (XLR); two per channel, independently selectable.
• - Speaker Output Connections: Audiophile grade, gold plated, 5-way binding posts.- Trigger:
• Trigger Input: 5 – 12 V (AC or DC); <10 mA input current required.
• Trigger Output: 12 VDC; can drive any load up to 120 mA.- Power Requirements
• Between 100 VAC and 250 VAC @ 50 / 60 Hz (automatically detected).- Front Panel Controls and Indicators
• Standby: push button (halo ring changes color to indicate Standby or On).
• Status LEDs: one per channel; blue.
• Status LEDs change to red to indicate a fault condition.- Rear Panel Controls
• AC Power switch: rocker switch (switches AC main power).
• Status LEDs switch: disables front panel Status LEDs and dims Standby button halo.
• Input selector switches (one per channel):
• metal toggle switches; select between balanced and unbalanced inputs.Circuit Breaker: press button to reset circuit breaker.- Protection
• The XPA Gen3 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other
• common fault conditions.Mechanical
• Dimensions:
• 17” wide x 8” high x 19” deep (unboxed; including feet).
• 17” wide x 7” high x 19” deep (unboxed; without feet).
• 24-1/2” wide x 12” high x 24-3/4” deep (boxed).Weight:
• 35.5 lbs (unboxed).
• 40.5 lbs (boxed).
